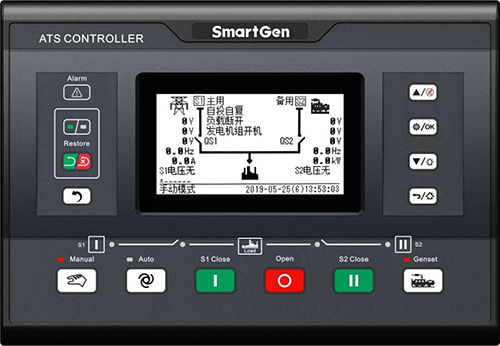

As one series of SmartGen products, HAT series of ATS control modules have been developed and produced since SmartGen was founded in 1998. The “family” of dual power control modules have experienced several generations of updating. After 20 years of diligent work, it has grown into the second largest business unit of SmartGen. In October 2019, we will introduce a new member of the dual power control module family, HAT820/S. Before we meet the new control module, let’s talk about its new features and highlights.
New Features N0.1 Line Voltage (L-L) Power Supply At present, the power supply of conventional control modules in the industry are generally AC phase voltage (L-N) power supply, or phase voltage + DC power supply. In some three-phase and three-wire applications, if there is no DC power supply, it is very troublesome to solve the power supply problem of the control module. It is necessary to separately add DC switching power supply and switch two-way L-L through relay to supply the AC input end of the switching power supply. Not only increasing the cost and occupying the cabinet space, but also reducing the reliability of the system. So what shall we do?
Don’t worry, it’s no big deal with HAT820! HAT820 control module power supply adds AC line voltage (L-L) power supply function, providing the perfect solution for three-phase and three-line applications such as power plants and chemical plants. HAT820 can provide customers with three power supply modes: 1. DC (DC8-35v); .2. AC phase voltage L-N; 3. AC line voltage L-L (90-576v).

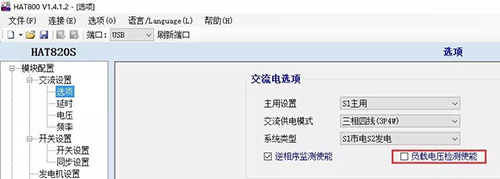

New Features N0.2 Load End Voltage Detection HAT820 control module increases the voltage of the load (L-N) detection, the control module not only detects the closing state of the switch, but also detects the load end voltage. If after the success of the closing or loading into the voltage of the lines in the process of normal load voltage, the control module will display load no voltage alarm, remind users to check the switch failure. The user can choose to enable or disable this feature.

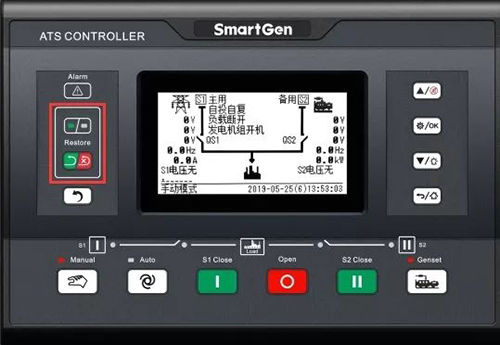

New Features N0.3 Key Switch Self-restoring & Non-self-restoring At present, HAT600 and HAT700 need to enter the control module settings to switch between non-self-restoring while the front panel of HAT820 control module adds the keys and instructions of self-restoring and non-self-restoring , which can be directly switched between self-restoring and non-self-restoring, making it easy and fast for users to operate.

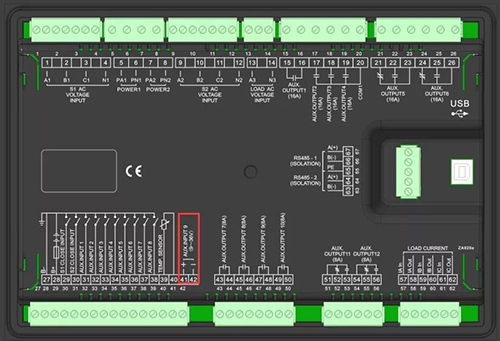

New Features N0.4 Programmable Input Port Active Input The programmable input port of HAT820 has been added with one active input, and the programmable input port 9 is (DC 9-36v) active input, which can be used for fire control cutting (forced breaking) input and other functions.
New Highlight N0.1 Black Box Recording Log events of the state information, voltage, frequency, current and other parameters before and after the event. Helping users to analyze data and determine faults.
The black box can record up to five events. Each event records status information for a total of 60 seconds before and after the event, recording once per second. When the number of records exceeds 5, the new record covers the original one. The first record is the latest one, users can check each record by the confirm key, and check the specific data status of 60 records in each record by the up and down keys.

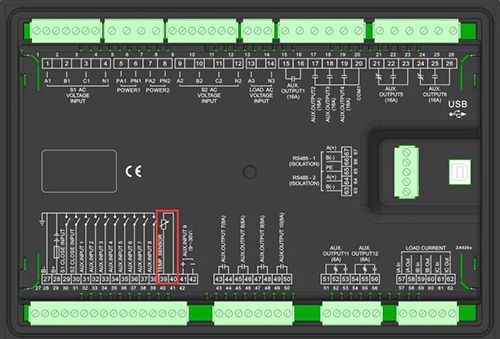

New Highlight N0.2 Temperature Detection The HAT820 can be externally connected with resistance type temperature sensor (PT100) to detect the temperature inside the cabinet. The draught fan can be started and stopped according to the setting temperature to prevent the temperature inside the cabinet from being too high.
So much for the the revealing here, but highlights more than these! If you’re interested, let’s look forward to seeing them in October!
