SmartGen has more than 20 years of experience in design, development, manufacturing, sales and service of dual power control modules. According to the market demand, we wil introduce you a new generation of dual power switching control modules -HAT600P series. This series of products adopt the fashionable industrial design, and with direct display, simple operation and various of functions, which can meet the requirements of the CC class, CB class, PC class of dual power switching control; the high-end version HAT600PS has AC or DC power supply, current sampling, synchronous switching functions, ETHERNET, USB and RS485 interfaces.
Key Features
1. LCD（132*64）pixel with backlight; multiple language display (CN/ EN and other languages) 2.LED lamp power supply status and switch on status display 3.Main and standby settings, Auto Transfer Auto Recover/Auto Transfer Non Recover 4.Collecting and displaying two-way three-phase voltage, frequency and phase sequence 5.Collecting and displaying load active power, reactive power, apparent power, power factor, current 6.With S1, S2 independent overcurrent warning or trip alarm function 7.With NEL(Non Essential Load) and NEL trip function 8.Load Voltage detection function 9.With S1/S2 accumulative active power, accumulative reactive power and accumulative closing times 10.The waveform distortion rate and 3-21 odd harmonic component percentage of S1 and S2 phase voltage and load current can be measured 11.Displaying the current continuous power supply time and S1/S2 cumulative power supply time 12.It can achieve automatic and manual synchronous switching, and display the two-way power supply voltage difference, frequency difference, phase difference 13.For energy storage switches, you can wait for the switch PF (switch on preperation) signal to be effective before switching on 14.With functions of over voltage, undervoltage, overfrequency, underfrequency, phase loss and inverse phase 15.With self-defined boot interface function 16.With the manual mode, it can be forced to switch on or switch off 17.Manual test can be set on site to control the genset start and stop 18.With the functions of switch reclosing and power off recovery 19.Switch on output can be set as pulse or continuous output 20.RTC display and event log function, 200 pieces of data can be cycled 21.Black box function, which can record 5 sets of events of ATS transfer, and 60 detailed data of 50s before one set occurs and 10s after the event 22.Timing start/timing not start functions 23.Two genset can be controlled to realize the balanced time operation of main and standby operation for cycle operation 24.With wide range of DC power supply, withstand up to 80V DC input instantly 25.AC input terminals are widely spaced and can withstand up to 625V voltage input 26.RS485 isolated communication interface, ModBus-RTU communication protocol 27.USB interface is convenient to parameter setting and software upgrade 28.ETHERNET interface is applied to ModBus TCP/IP protocol 29.Suitable for a variety of AC system types (three-phase four-wire, three-phase three-wire, single-phase two-wire, two-phase three-wire)
Performance Parameters

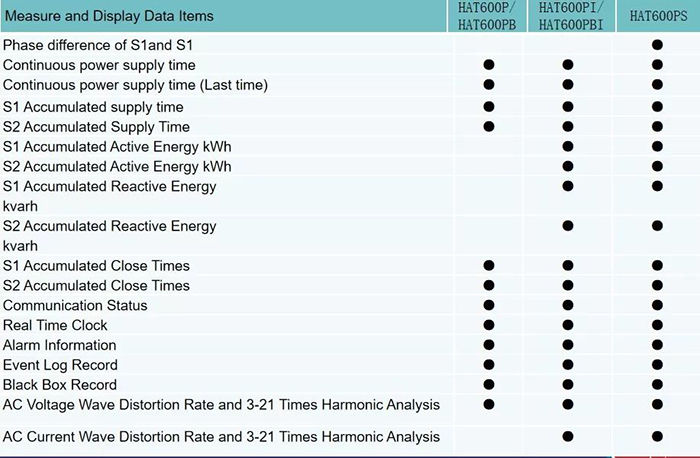

HAT600 Series—Products Classification and Comparison
