SOCOMEC Dual Power Switch Control Module Selection

At present, there are two main types of PC-level dual power switch in China: motor driven isolation and electromagnetic driven. Now we will introduce you a few suitable automatic switching control modules for the motor drive isolation SOCOMEC and the domestic equivalent dual power switch.

Economical Cabinet Installation Type–HAT163 Dual Power Control Module

1. Three types of installation : guide rail in cabinet, screws in cabinet and pannel installation; 2. It is simple and convinent for the short connection distance inside the cabinet; 3. With the detect funcitons of overvoltage, undervoltage, overfrequency, underfrequency, phase shortage and inverse phase sequence; 4. Panel LED can clearly display the ATS working state; 5. It can realize one-way main use, two-way main use, automatic switching and automatic recovery, automatic switching and non automatic recovery.

Simple Pannel Installation Control Module –HAT530N

1. Silicone mask, better performance at high and low temperature; 2. The output contact of the genset is always closed, so there is no need for external DC power supply; 3. Programmable relay is configured to control power supply switching of ATS; 4. Normal delay and abnormal delay of the power can be set; 5. With the detect function of overvoltage, undervoltage and phase shortage.

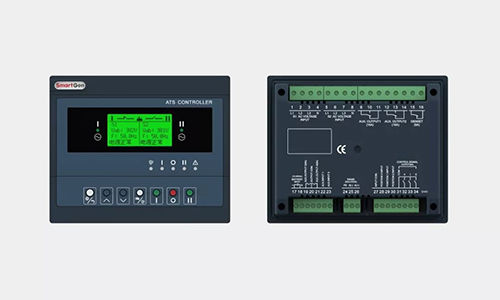

High Cost Performance–HATC60 Dual Power Control Module

1. 100ms quick switching 2. 132×64 LCD display with two languages (CN & EN); 3. It can collect and display two-way three-phase voltage, frequency and phase sequence; 4. With the functions of overvoltage, undervoltage, overfrequency, underfrequency, phase shortage and inverse phase sequence; 5. With the function of historical record, 200 pieces of data can be cycled; 6. With the function of regular inspection and starting /not starting at fixed time; 7. Two genset can be controlled to realize cycle operation, active-standby operation and time-balanced operation; 8. Standard RS485 isolated communication interface, ModBus-RTU communication protocol, with remote control, remote signal, remote regulating functions, which can remote control geneset start, stop, close and open of the remote control switch.

SmartGen has more than 20 years of experience in design, development and production of dual power switch control modules, and our products are widely used in subway, hospital, data center, intelligent buildings and other occasions. We have various series of products, which can adapt to PC, CB, CC level of different brands of dual power switch. For more information, please go to www.smartgen.cn or download the APP “SmartGen products” for more details.

WOODWARD Gas Engine Control System

—PG+Gas Control System

PG+Gas Control System is a reliable solution developed by WOODWARD based on more than 20 years of field application data and experience of Gas engines, as well as the operating features of Gas engines. It is suitable for a variety of non-road gas engines. Meanwhile, it could meet the requirement of lower fuel consumption rate and further improve the fuel economy. In addition, the solution improves the stability of speed regulation, increases the adaptability range of gas composition changes, meets the international standards of G2 and above of ISO8528, applies to higher emission standards, and increases the fault diagnosis and protection functions of OBD.

PG+Gas System Application Scheme

1. It can support various of application environments: genset, distributed energy, CHP, ship machine, pump set, etc; 2. Engine displacement: 2L-32L, power: under 880kW; 3. With a wide range of fuel adaptability: LPG, LNG, CNG, methane, coalbed methane, etc; 4. Supports switching between two different fuels; 5. Dual system control can support up to 16 cylinder engine, single system control can support up to 8 cylinder engine; 6. It Can support naturally aspirated and turbocharged engines; 7. It has two combustion modes: dilute combustion/equivalent combustion; 8. Self-learning function of gas quality; 9. Suitable for a variety of gas pressures, supporting low pressure gas pressure supply (1-4)kpaG.; 10. It can support a variety of genset control modules and achieve genset parallel/grid connection.

PG+Gas System Single System Diagram

PG +Gas Dual-system Dual-fue Diagram

PG+Gas System Application

www.smartgen.cn

Making control easier

–SmartGen of Marintec China 2019 is well under way

The 20th Marintec China opened at SNIEC on Dec. 3rd, 2019. More than 2200 exhibitors from home and abroad participated in and SmartGen as the China’s leading enterprise specializes in design, development, manufacture, sale and service of engine/genset control, ATS and ATS control, engine heaters, battery chargers and related products, with a full range of marine products and technology displayed at F54 in W2 hall. The main engine factory owers, ship electrical and automation integration makers, ship owners and other units visited our booth at the beginning of opening ceremony, trying to further know about our products and share using experience with each other.

On-site pictures of exhibition

Products on display

Real ship installation of Smartgen marine products

For more information, welcome to booth W2F54.
